Công tắc hành trình 2HM19-5

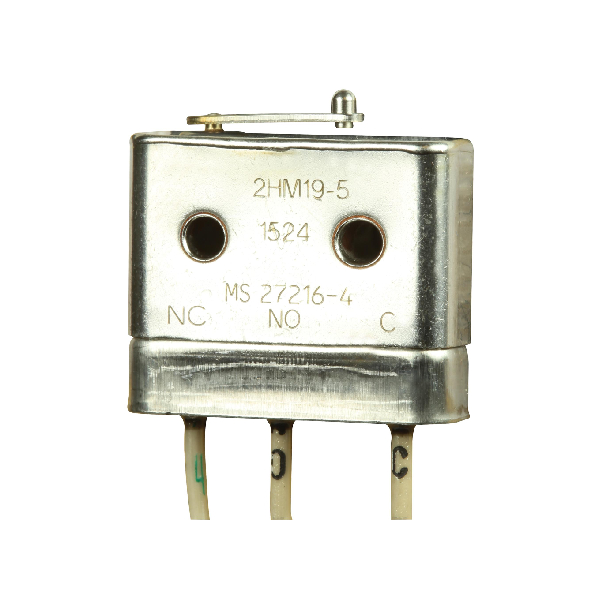

Honeywell Hermetic sealed Micro Switches 2HM19-5
đại lý 2HM19-5
nhà phân phối 2HM19-5
Thông số kỹ thuật công tắc hành trình Honeywell:
Sản phẩm | Thông số kỹ thuật |
---|---|
Thương hiệu | Honeywell |
Model Number | 2HM19-5 |
Kiểu | Hermetic Sealed Basic snap-action Micro Switches HM Series |
Vật liệu | Stainless steel |
Mechanical endurance | 25,000 operations min. |
Dòng điện endurance | 25,000 operations min. |
Dielectric voltage (initial) | 1000 Vrms for 1 minute |
Mạch điện | SPDT |
Vật liệu tiếp điểm | silver, gold, gold bifurcated |
Dòng điện rating | up to 4 A at 28 Vdc |
Cấp bảo vệ | symbol 5, hermetic sealed to MIL-PRF-8805 |
Temperature range | -65 °C to 121 °C |
Độ rung | symbol 2 (15 g), 10 to 2000 Hz |
Mechanical shock | shock type M (100 G, saw tooth) |
Approvals | MIL-PRF-8805, UL 508 |
Lực tác động | 198 [7]max. g [oz] |
Release force | 28 [1]max. g [oz] |
Pretravel | 0,76 [0.03]max. mm |
Overtravel | 0,08[0.003]min. mm |
