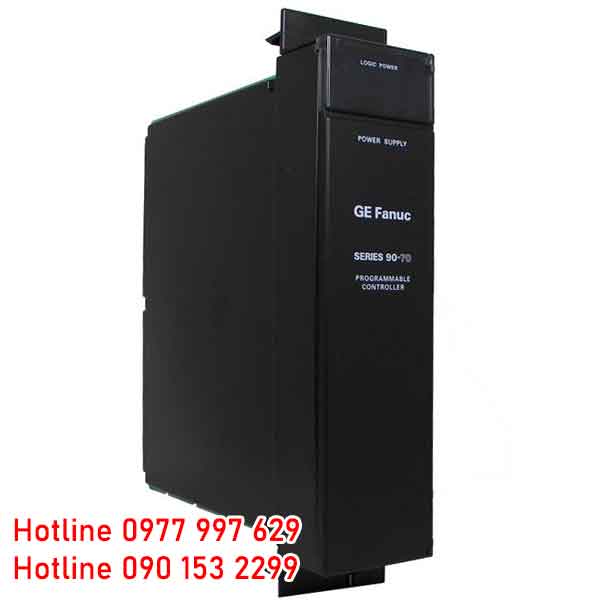

Module nguồn IC697PW711N

Thông số kỹ thuật mô đun GE IC697PW711N

Brand	GE Fanuc
Series	90-30 PLC
Part Number	IC697PWR711
Nominal rated voltage	120/240 VAC
Input Power	160 watts maximum at full load
Product Type	Power Supply Module
Load Capacity	100 Watts
No. of Outputs	Three (3)
Output Voltage	+5 VDC: 4.90 to 5.25 volts (5.07 volts nominal) +12 VDC: 11.75 to 12.6 volts ‘ -12 VDC: -12.6 to -11.75 volts
Input Voltage Range, AC	90-132 VAC / 180-264 VAC
Input Frequency Range	47-63 Hz
Input Half Cycle Peak Inrush	55 amps (typical), 77 amps (maximum)
Overvoltage Limit	+5 VDC Output: 5.7 to 6.7 volts
Overcurrent limit	+5 VDC output: 26 amp, maximum +12 VDC output: 4 amp, maximum -12 VDC output: 2 amp, maximum
Holdup Time:	21 milliseconds minimum
Type	Power module
AC Input	90 to 264 VAC
Frequency	47 to 63 Hz
DC Input	100 to 150 VDC
Voltage regulation	5, 12, and -12 VDC
Power Factor	> 0,93
Output power	100 Watts maximum (total for all 3 outputs)
Operating temmperature	0-60 degrees Celsius
