Bộ điều khiển béc đốt FC0501U220

Thông số kỹ thuật BC2000 FC0501U220

–  Safety test start, flame monitor and flame safe guard.
–  Flame signal switch output.
–  4 LEDs on the front of the device, indicated: power (red),valve(yellow),flame(yellow) and
alarm (red).
–  A non-inflammable, plug-in type plastic case.
–  Two stages combustion control.
–  The switch, in front of controller, is to start/stop the combustion process. It is also a reset of
alarm.
–  Different types can be used with UV, ionization or normal light flame sensor.

TECHNICAL DATA:

Power:220Vac (± 10%),50/60 Hz;(110Vac is available);
Power Consumption: 5 W;
Ambient Temperature:0 ~ 60 °C;
Environment: <90%, no moisture condensation admissible;
Safety Start Testing Time (T1):10S;
Flame Establish Period (T2):15S;
Flame Failure Response Time(FFRT):< 2S;(T1, T2 and FFRT can also be designed by customer’s special requirements.)
Protection:IP40;
Max. load per output:
–  Flame signal (contact output):<2A;
– Igniter(term. 6):<1A;
– Valves(term. 7,8):<2A;
– Alarm(term.9):<1A;
– Total load:< 5A;

Model No. and flame sensors:
FC0501U220:(220Vac,50/60Hz)
– GreenIsland FUVS series UV flame detectors
– Honeywell C7027A or C7035A
FC0501U110:(110Vac,50/60Hz)
– Same as FC0501U220
FC0501R220:(220Vac,50/60Hz)
–Ionization probe
–Honeywell C7012A(220Vac,50Hz).
FC0501R110:(110Vac,50/60Hz)
–Same as FC0501R220
FC0501L220(220Vac,50/60Hz)
–Normal light
FC0501L110:(110Vac,50/60Hz)
–Same as FC0501L220

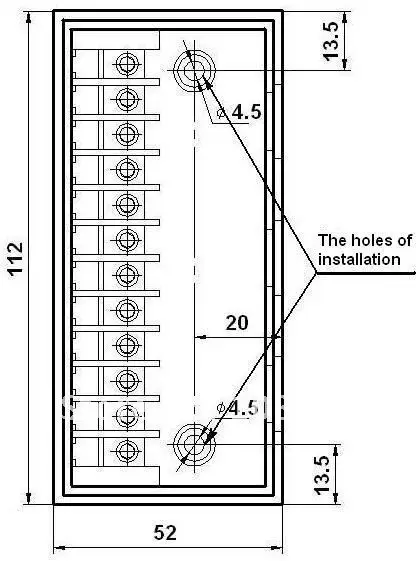

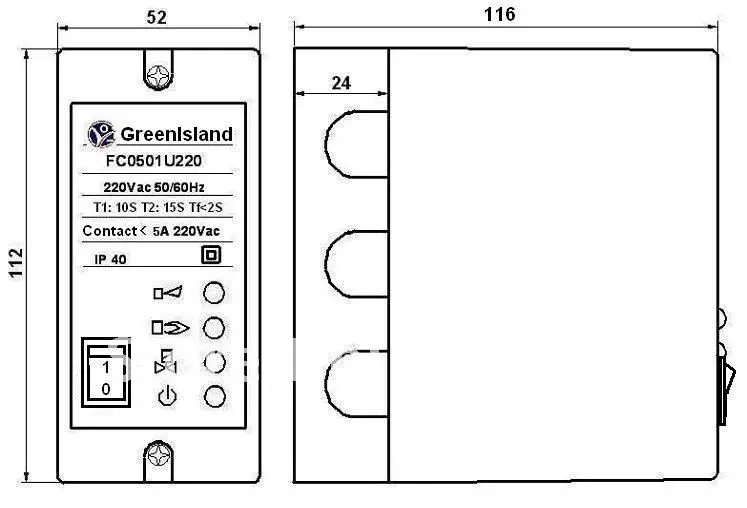

Size:

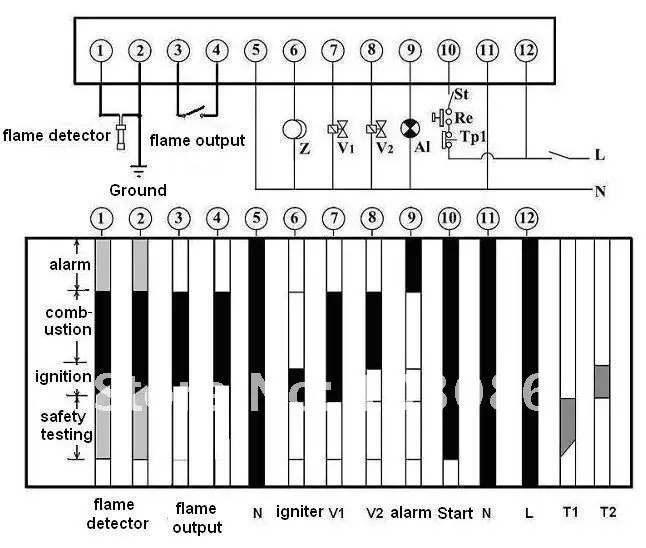

Wiring Curve:

bộ điều khiển FC0501U220 have exported to Malaysia,Australia and Pakistan.

Bộ điều khiển FC0501R220 have exported to Pakistan.
